12. Vacuum Bottle

Overview

The vacuum bottle provides a buffer volume, and a low-noise, low-flow vacuum pump is sufficient when the nozzle is working intermittently.

Required Parts And Accessories

  • Aluminum Bottle 1.2L
  • Sealing Cap Assemblies
  • T/Y Connectors
  • Some D4 rubber tube

Assembly

Note

It is possible to use 2 vacuum pumps at the same time or just 1 pump with the other as a spare part.

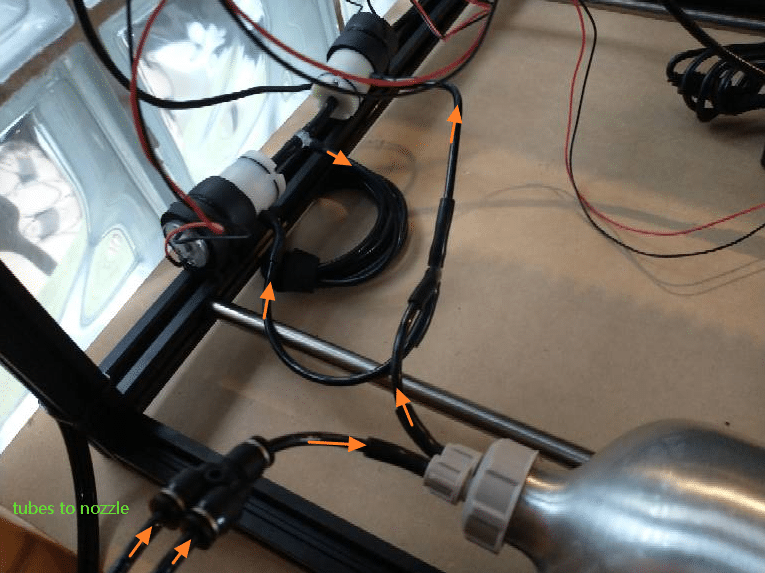

1. Use Two Pumps Together

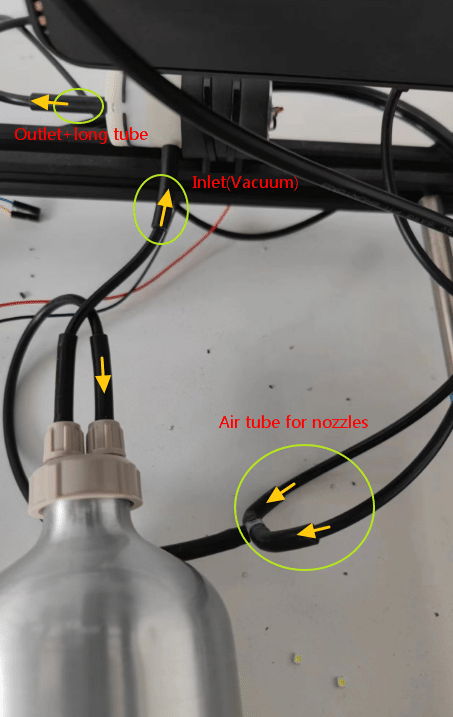

2. Use One Pump

3. Software Setup

Because of the vacuum bottle, the vacuum build-up time after the vacuum pump is started will be slow.

In order to ensure that the first component of each task can be picked up successfully, a certain delay needs to be set in OpenPnP.

This delay only affects the first component of each job.

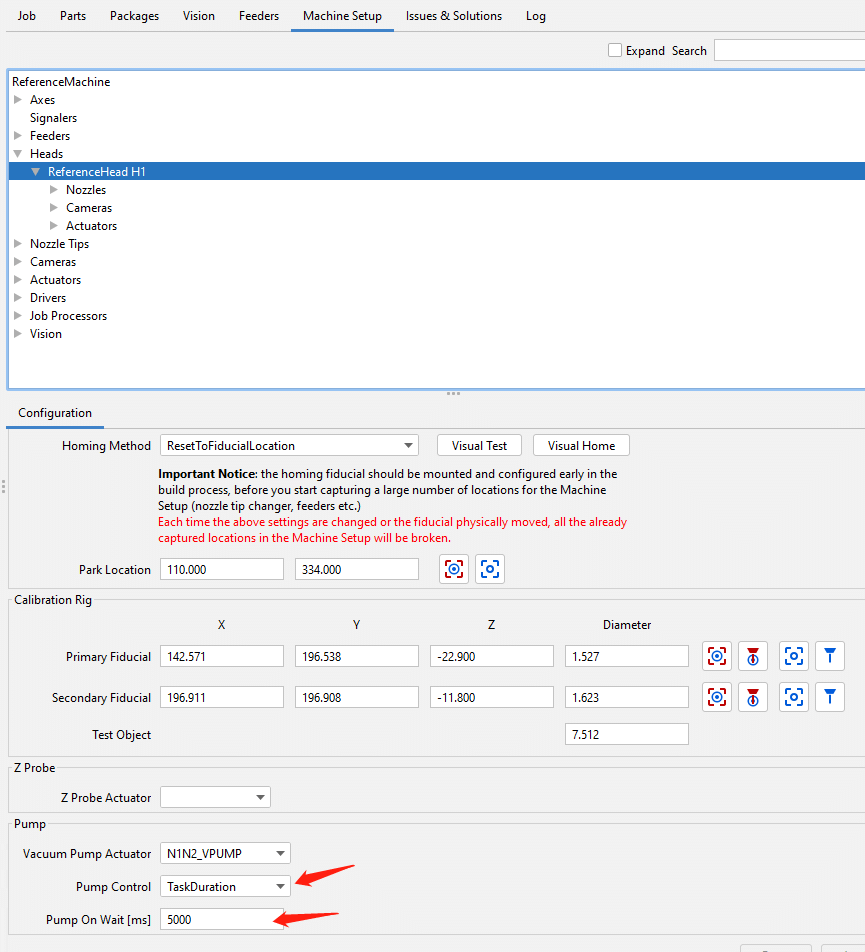

Please set it up as follows, about 5000ms delay is sufficient:
