10. Motion controller board

Overview

Install PP_MotionController_V2.0 board on the back of the body frame. Connect the FFC cable, USB cable and other components to the motion controller board.

Required Parts And Accessories

  • PP_MotionController_V2.0 *1
  • SHCS M3X12 *2
  • Flat Washer M4-12 *2
  • Column Spacer 3-7-4 *2
  • T-Nut 20-M3 *2
  • USB2.0 A-TypeC 2m *1
  • USB2.0 Extension Cable 1.5m *0\~1

Assembly

1. Board Installation

Install the PP_MotionController_V2.0 board to the back of the body frame.

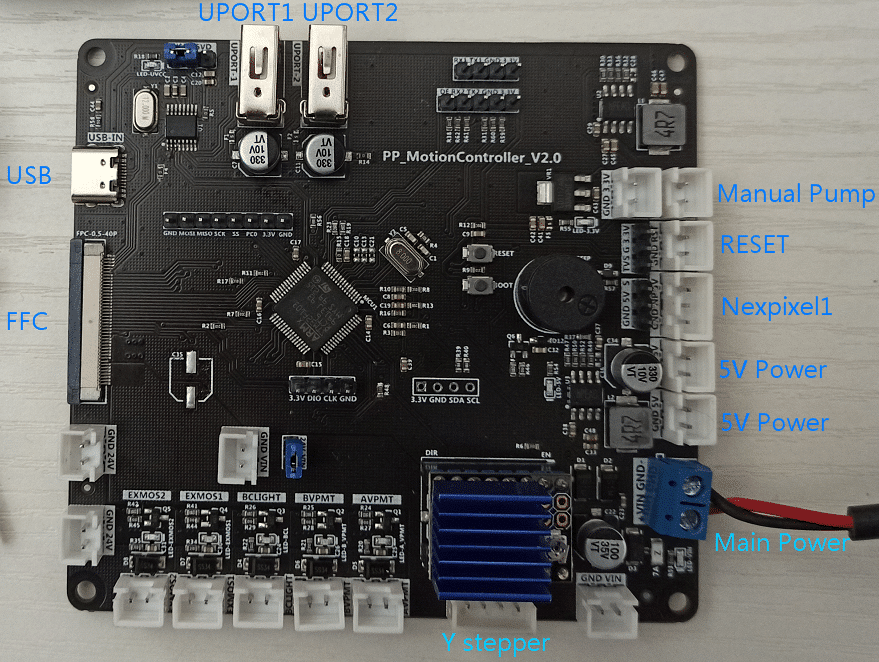

PP_MotionController_V2.0 overview :

Note

Manual Pump can control the EXMOS2 independently.

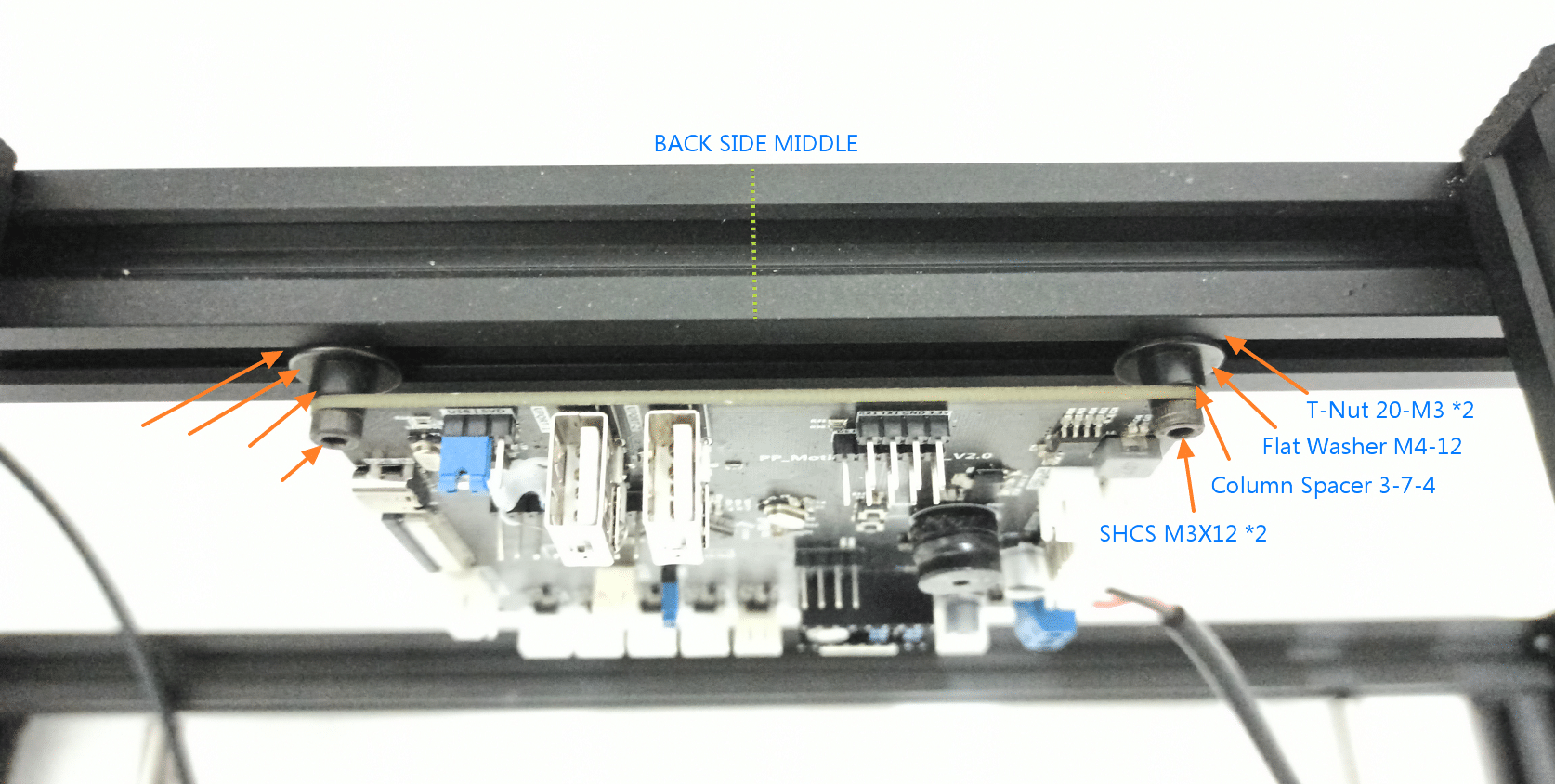

Use screws, spacers, washers and t-nuts to fix the board to the back side of body frame.

2. Connections

Connect components to the motion controller board as follows:

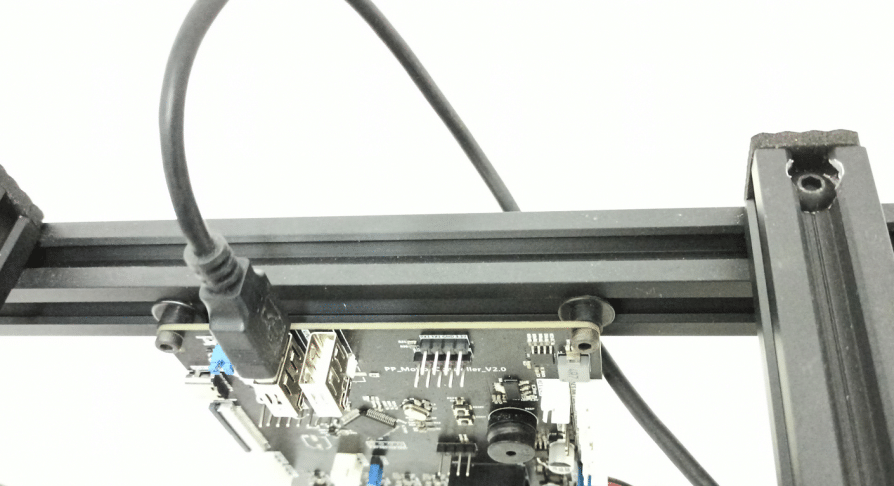

  • Connect FFC cable to FFC connector.

  • Connect USB2.0 A-TypeC 2m to USB-IN port.

  • Connect the bottom camera USB to the UPORT1/ UPORT2 port.

  • Connect the bottom camera light to the BCLIGHT connector using XH2.54-2P wire.

  • Connect two vacuum pumps to the AVPMT and BVPMT connectors respectively.

  • Connect Y-axis stepper motor to YSTEPPER connector.

  • (Recommended) Connect the reset keyswitch to the RESET connector.

  • (Optional) Extend the length of the USB2.0 A-TypeC 2m cable with USB2.0 Extension Cable 1.5m.

  • (Conditional) Extend the length of the Bottom camera USB cable with USB2.0 Extension Cable 1.5m to connect to an independent USB port on the computer.
