8. Bottom Camera Assembly

Overview

Install the bottom camera, the bottom camera light, PP-FiducialHomeBoard-V1.0 on the PPA1 Bottom Camera Platform.

Required Parts And Accessories

• PPA1 Bottom Camera Platform *1
• PP-FiducialHomeBoard-V1.0 *1
• PP-BCAM+ PP-BCL-V1.2 assembly *1
• BHSHCS M3X6 *8
• BHSHCS M3X16 *2
• Hex Flange Nut M3 *2
• Column Spacer 3-7-4 *4
• T-Nut 20-M3 *4
• Discard Cup *1

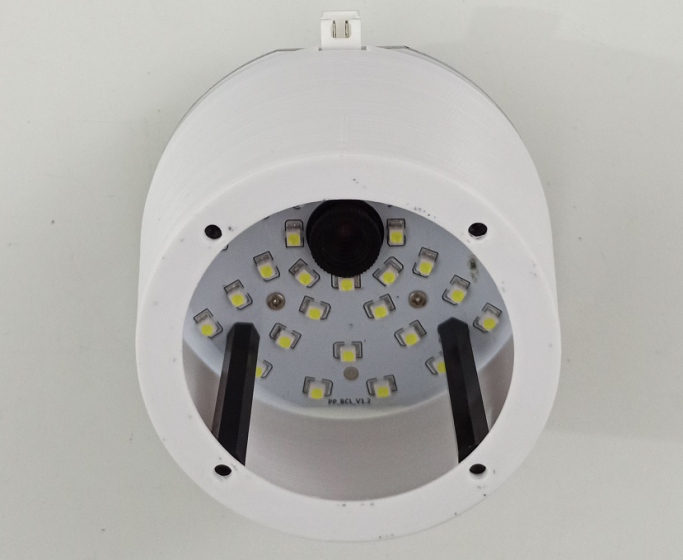

PP-BCAM+ PP-BCL-V1.2 assembly

Assembly

1. Bottom Camera Mount

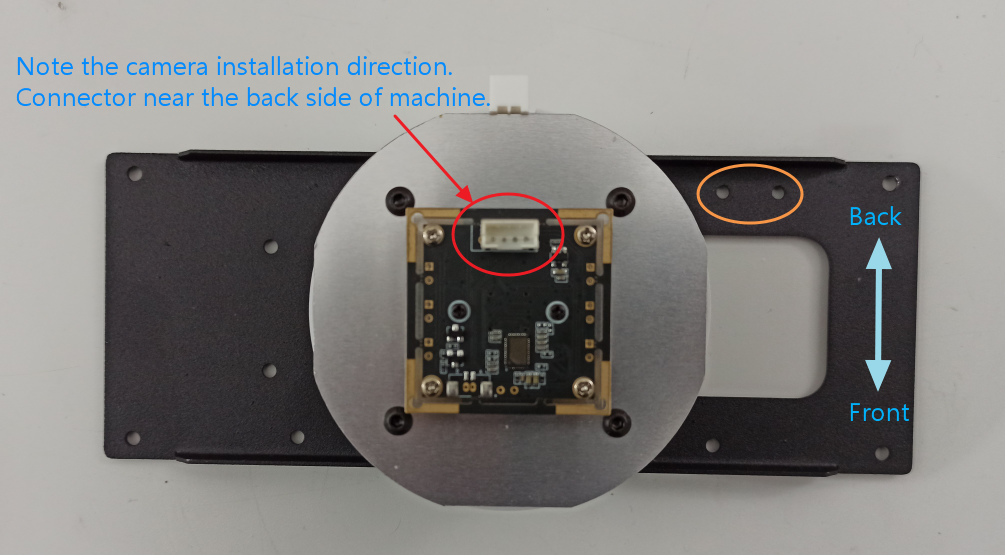

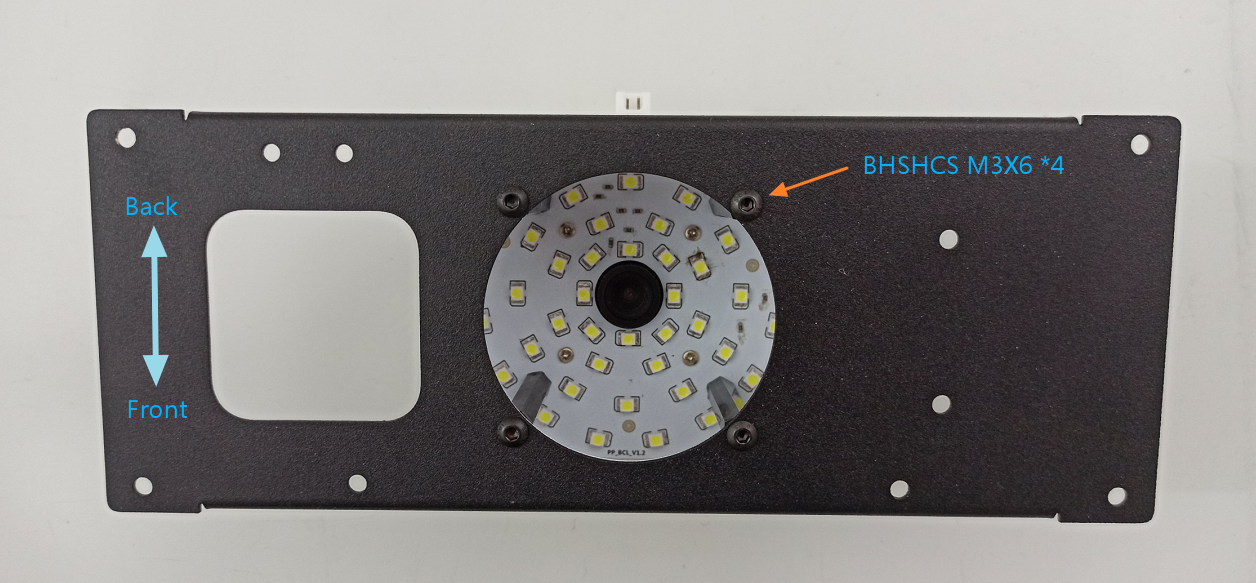

Install the bottom camera assembly to the platform:

2. Fiducial Home Board

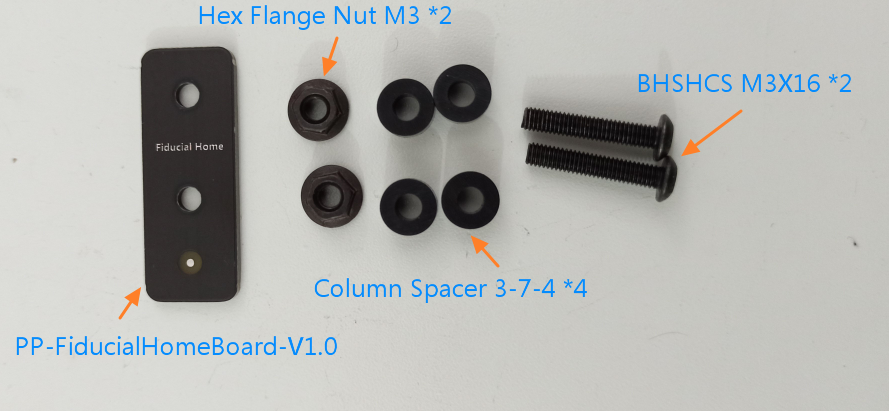

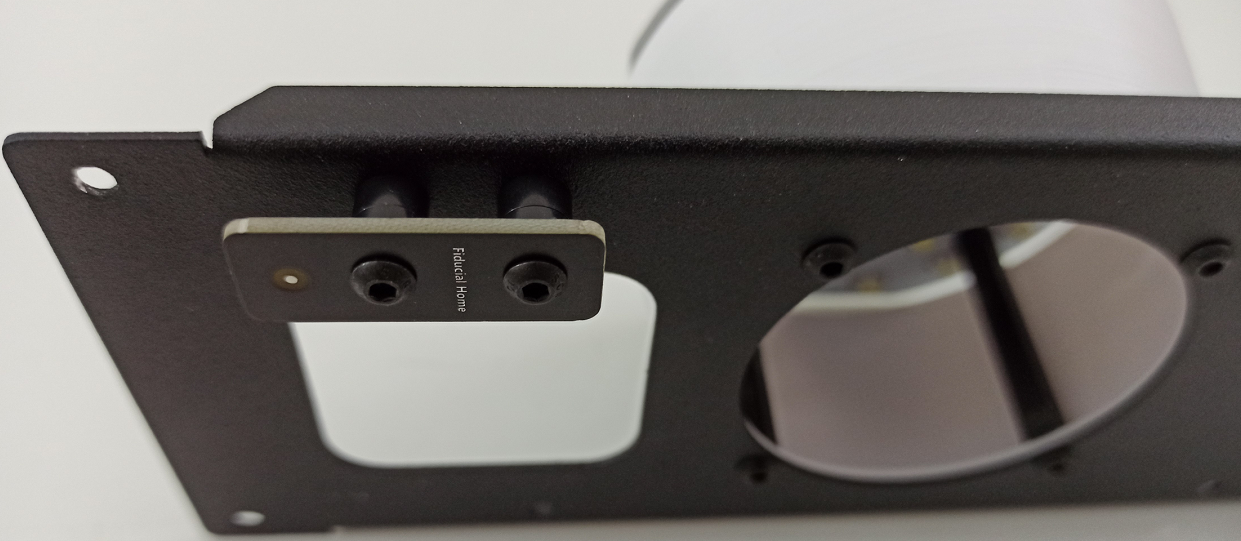

Install the fiductial home board to the top of the camera platform:

3. Camera Platform Install

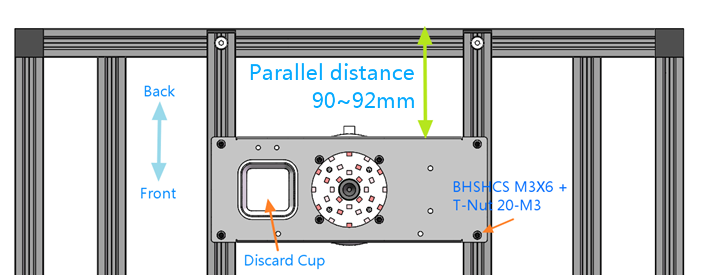

Mount the platform to the Y-direction holder of the body frame.

Place the Discard-Cup in the corresponding opening.
