7. Vacuum Pumps And Tubes

Overview

Install the vacuum pumps on the frame. Connect vacuum pumps to vacuum tubes.

Required Parts And Accessories

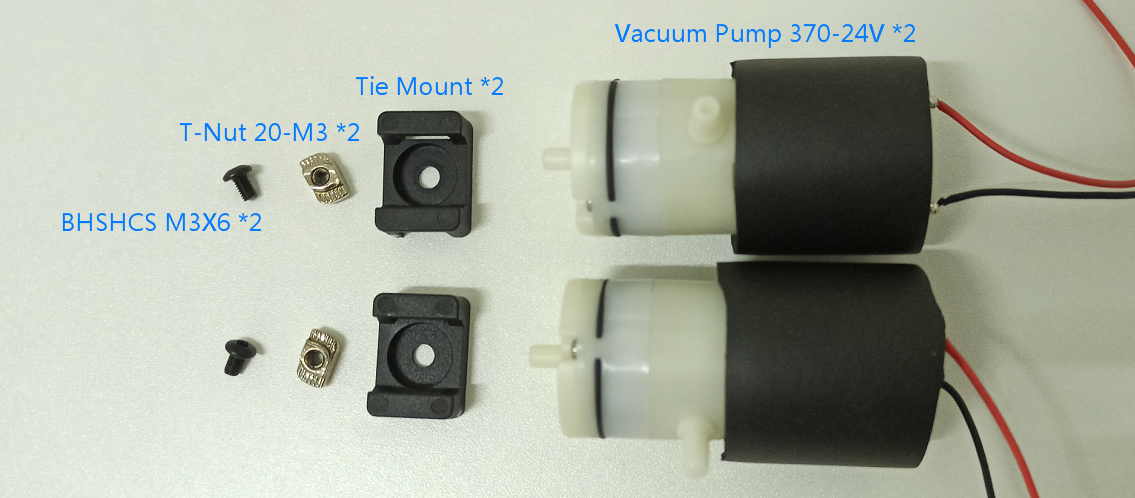

  • Vacuum Pump 370-24V *2
  • Tie Mount *2
  • BHSHCS M3X6 *2
  • T-Nut 20-M3 *2
  • Nylon Tie 3X200 *2
  • Rubber Tube D6-L30 *9
  • Rubber Tube D4-L200 *1
  • Rubber Tube D4-L2000 *0\~1
  • Micro T Connector *1

Assembly

1. Install The Vacuum Pumps

Install the vacuum pumps on the back side of body frame:

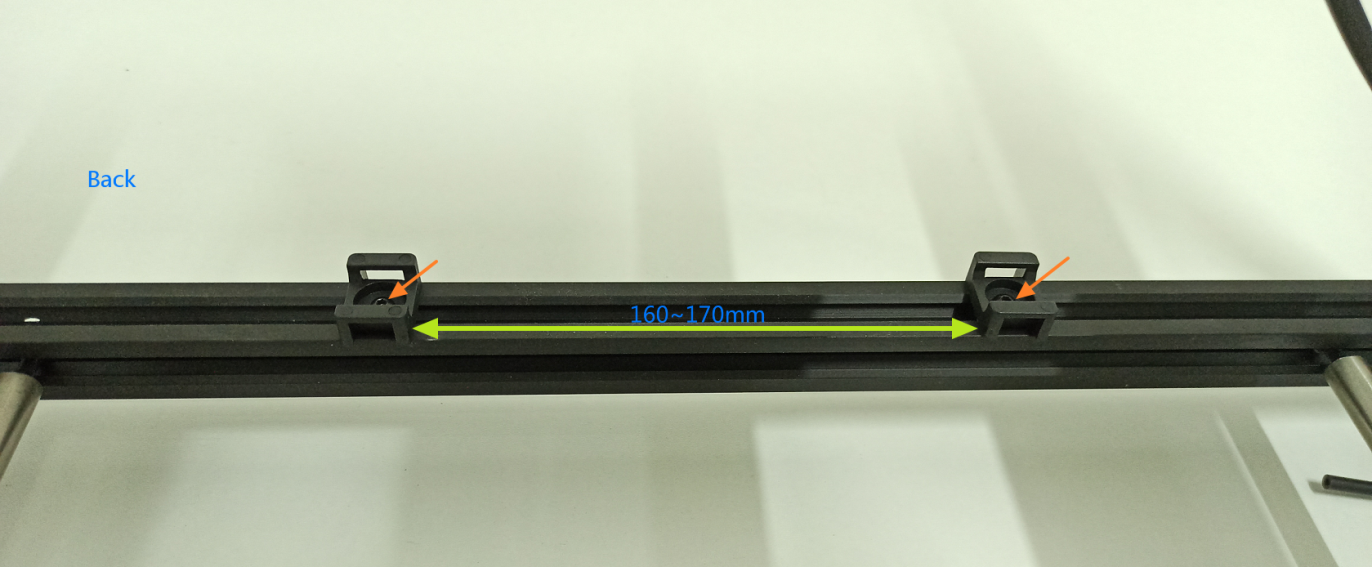

Install two Tie Mount to the aluminum profile on the bottom side of the back of the body frame.

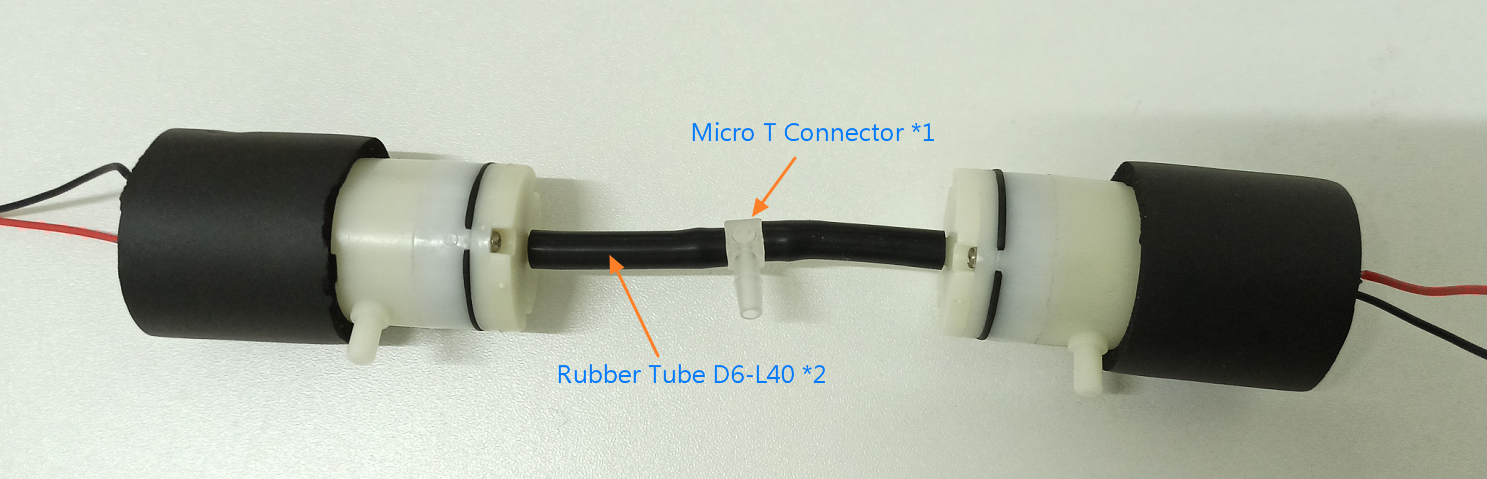

Use Rubber Tube D6-L30 and Micro T Connector to connect the exhaust ports of the two vacuum pumps together.

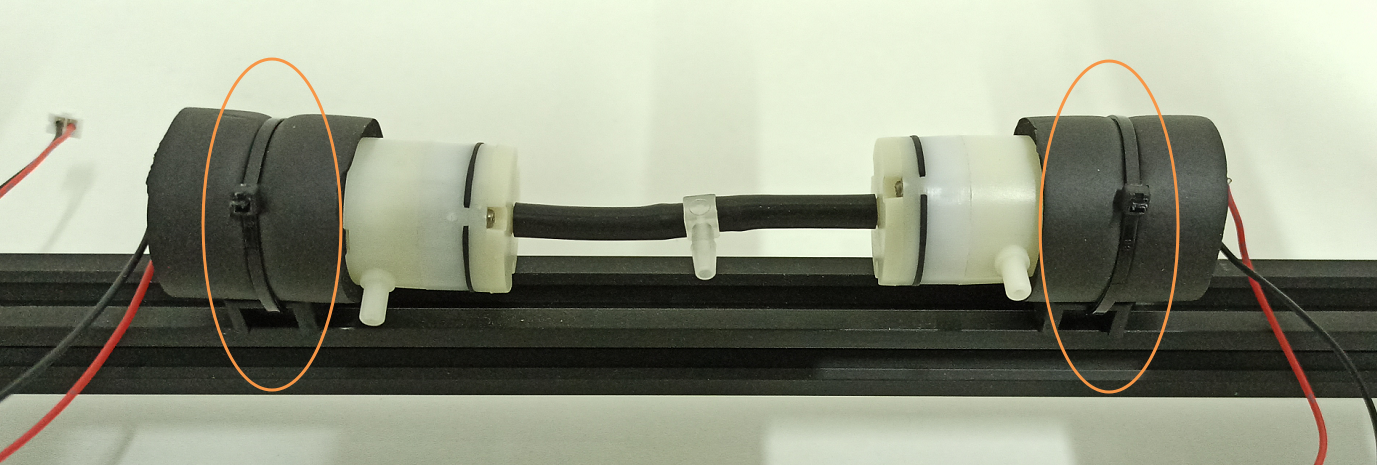

Use Nylon Tie 3X200 to secure the two vacuum pump motors to the Tie Mount.

2. Connect The Vacuum Pumps

Connect vacuum pumps to vacuum tubes (parallel connection).

Note

Vacuum bottle is recommended, please ignore the following and refer directly to the vacuum bottle installation. There are 2 black Y connectors that replace the micro T connectors.

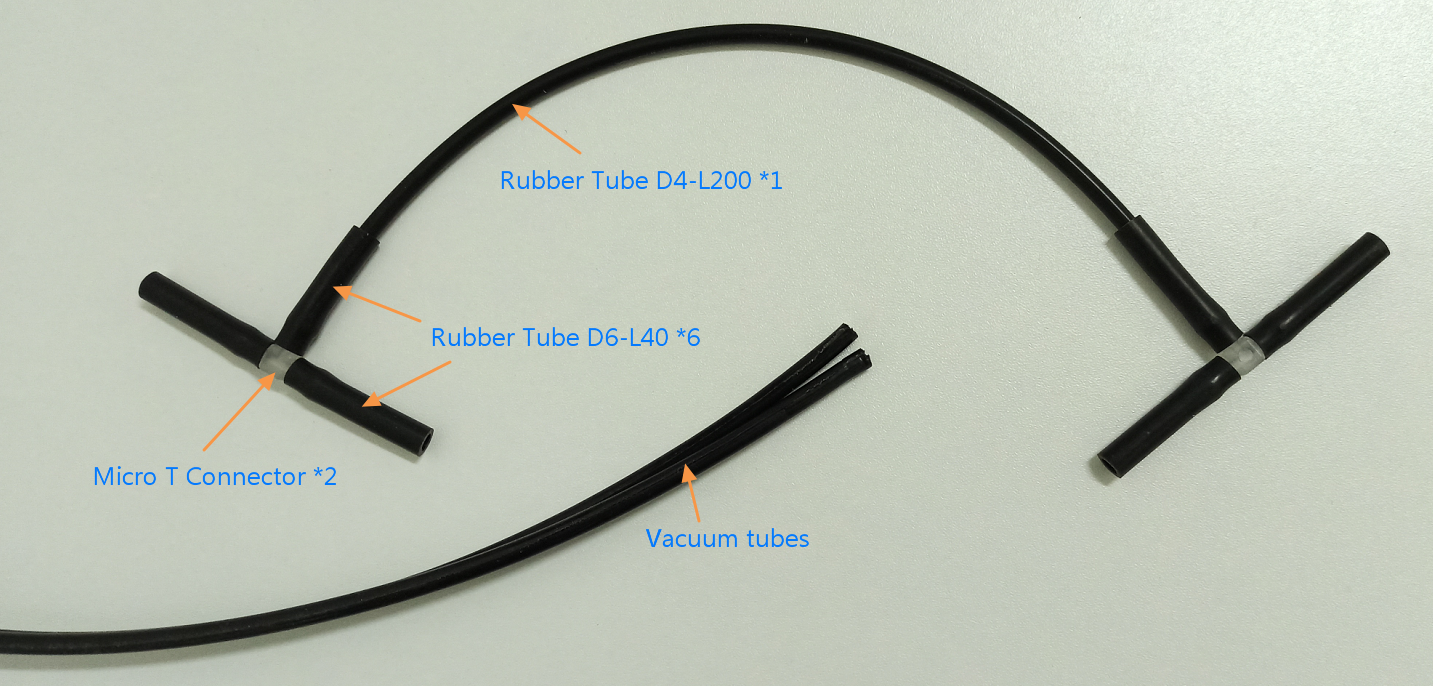

Connect the rubber tubes and micro T connectors as shown.

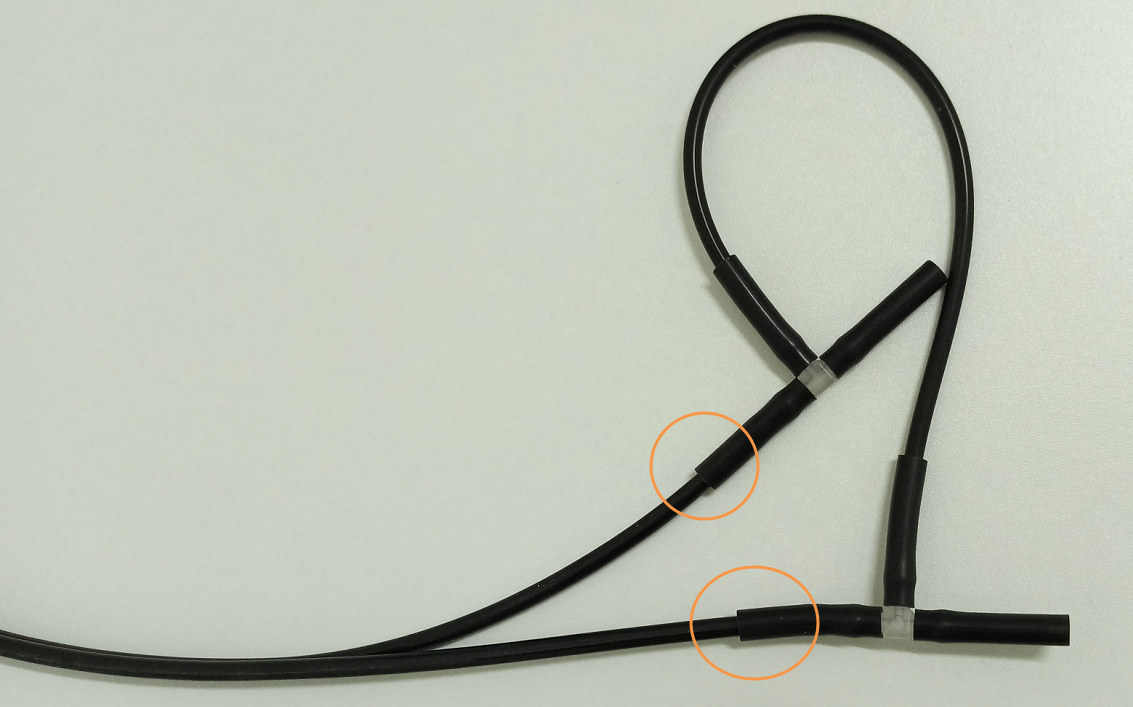

Connect the end of the vacuum tube to two Rubber Tube D6-L30 respectively.

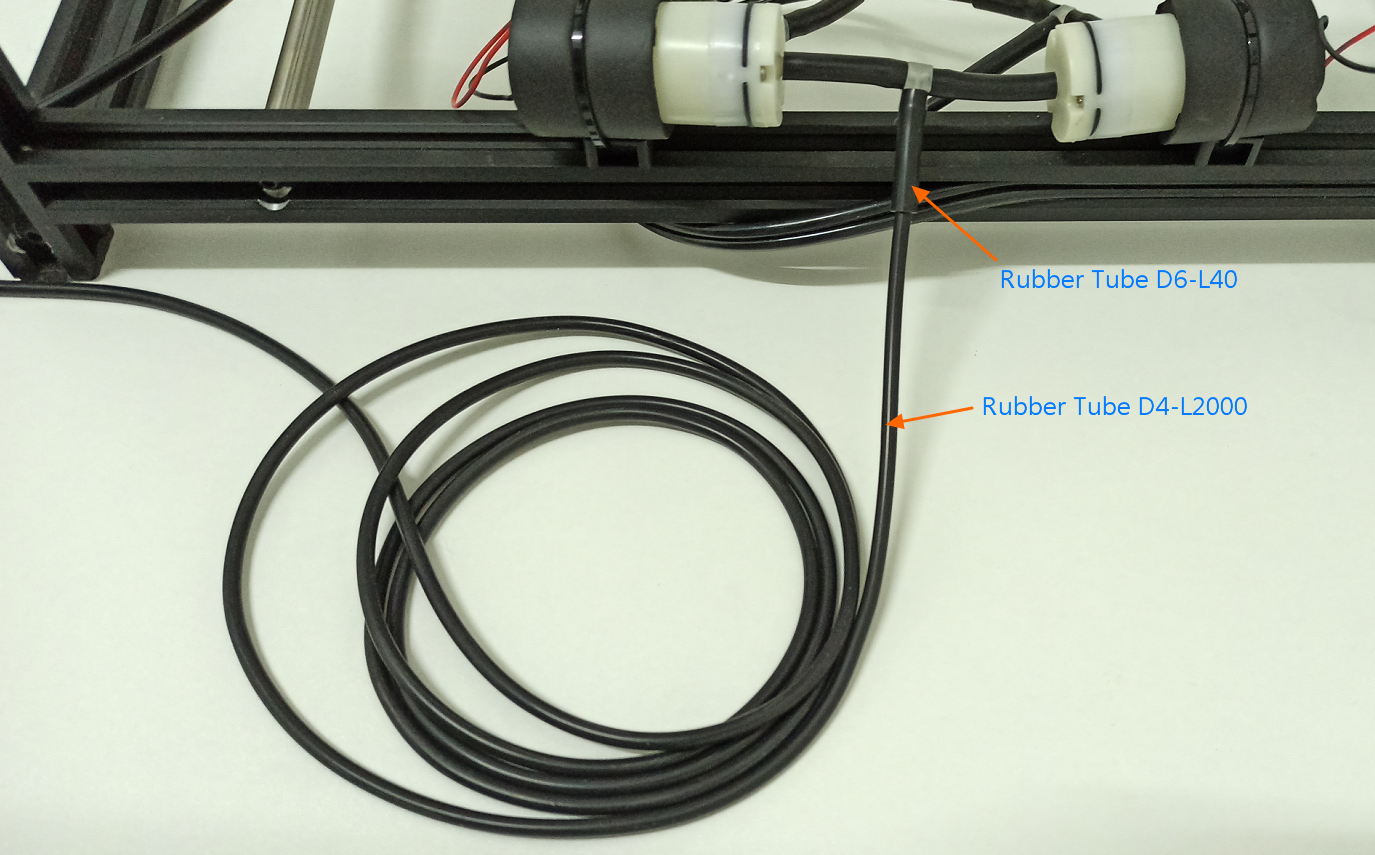

Part of the vacuum tube can be plugged into the aluminum profile at the bottom of the back of the body.

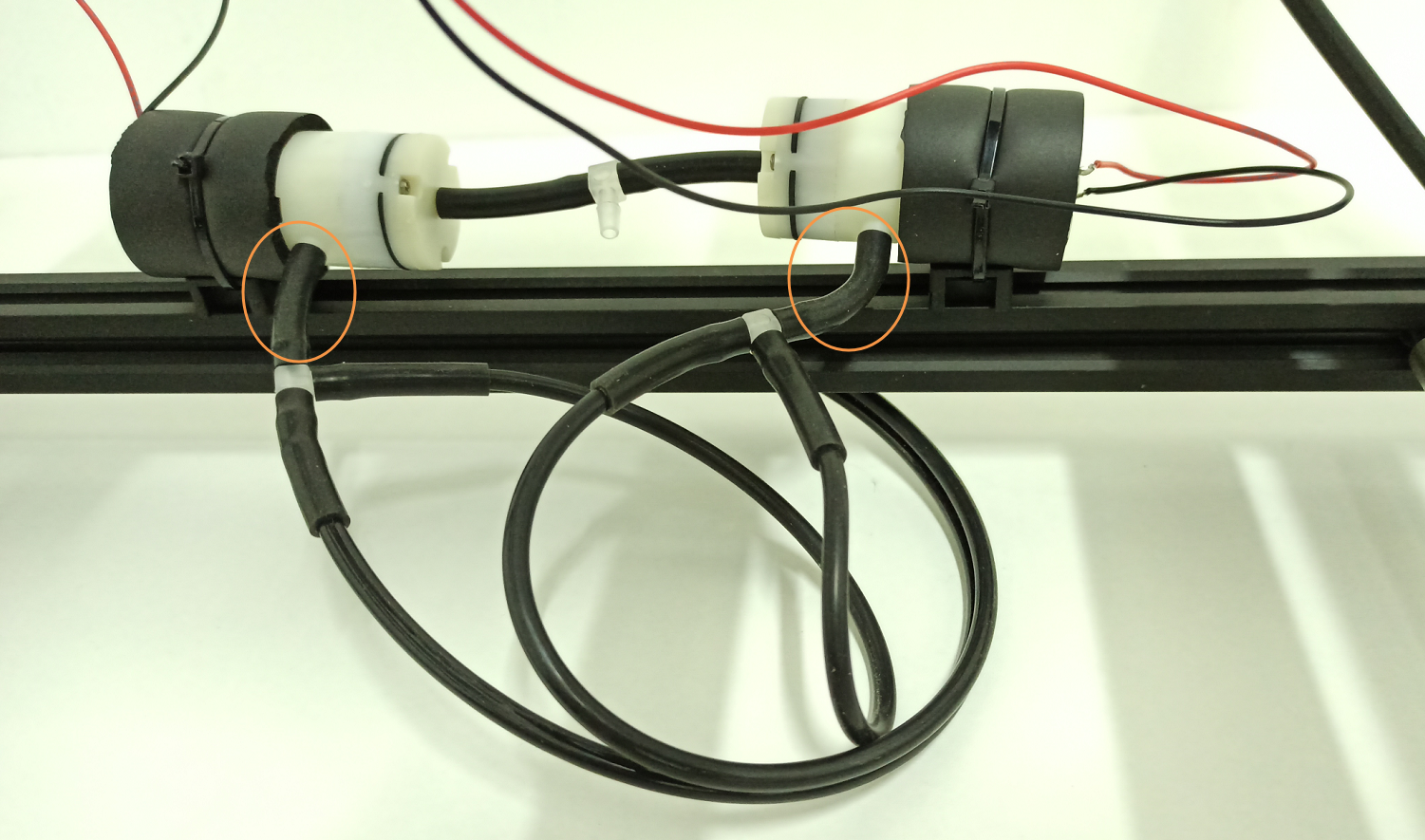

Connect the ends of the two Rubber Tube D6-L30 to the negative pressure ports of the two vacuum pumps respectively.

Note

The current connection method is two vacuum pumps connected in parallel and outputting at the same time, which is the preferred method.

3. (Optional) Noise Reduction

With a simple connection, the operating noise of the vacuum pumps can be reduced very effectively.
