4. Adding X And Y Axis Belts
Overview
Use nylon ties to fix X Y axis timing belt, secure the timing belt pulley, use springs to tension timing belt, etc.
Required Parts And Accessories
- Timing Belt 2GT-9-5m *1

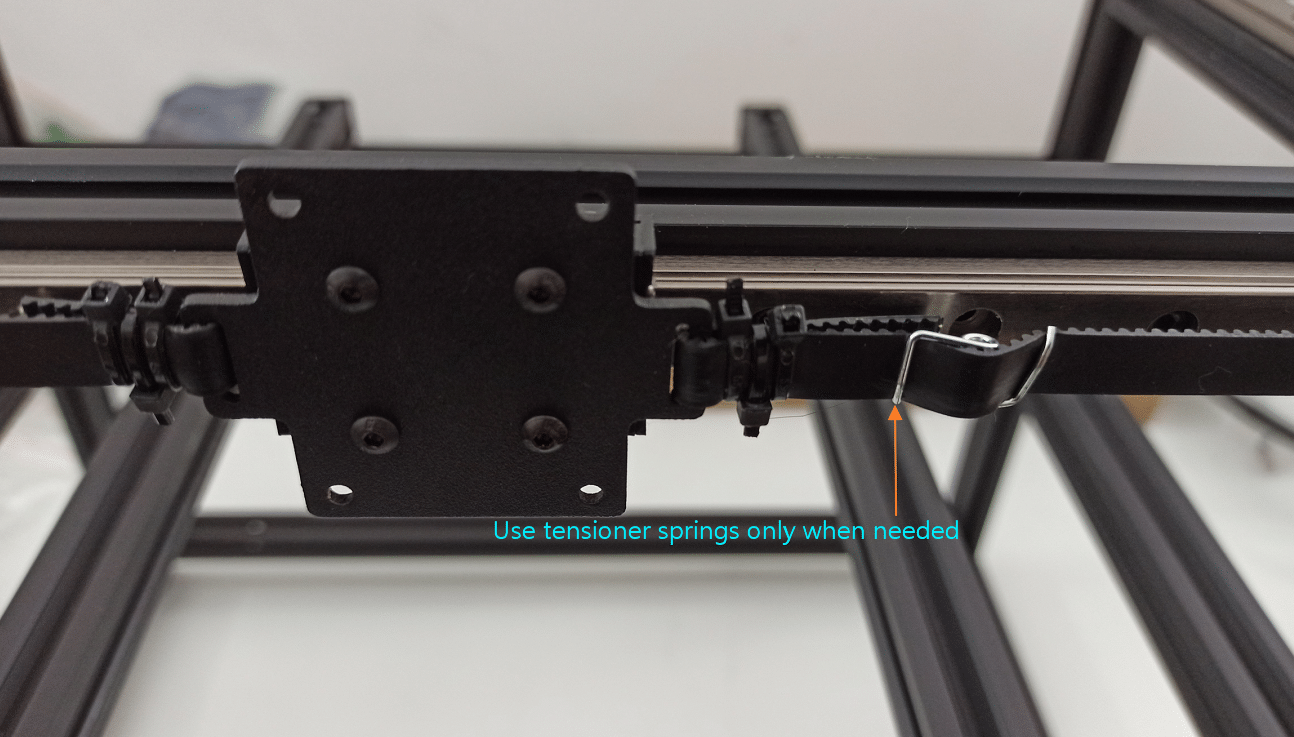

- Timing Belts Tension Spring *0~3
- Nylon Tie 3X150 *18
Assembly

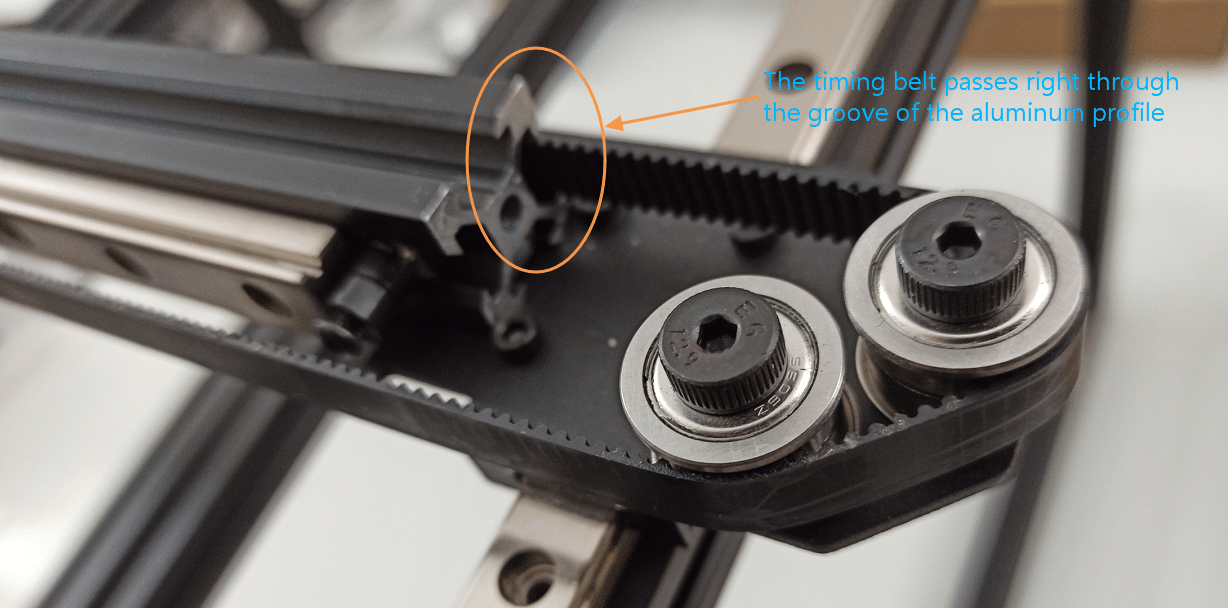

1. X Axis Belt

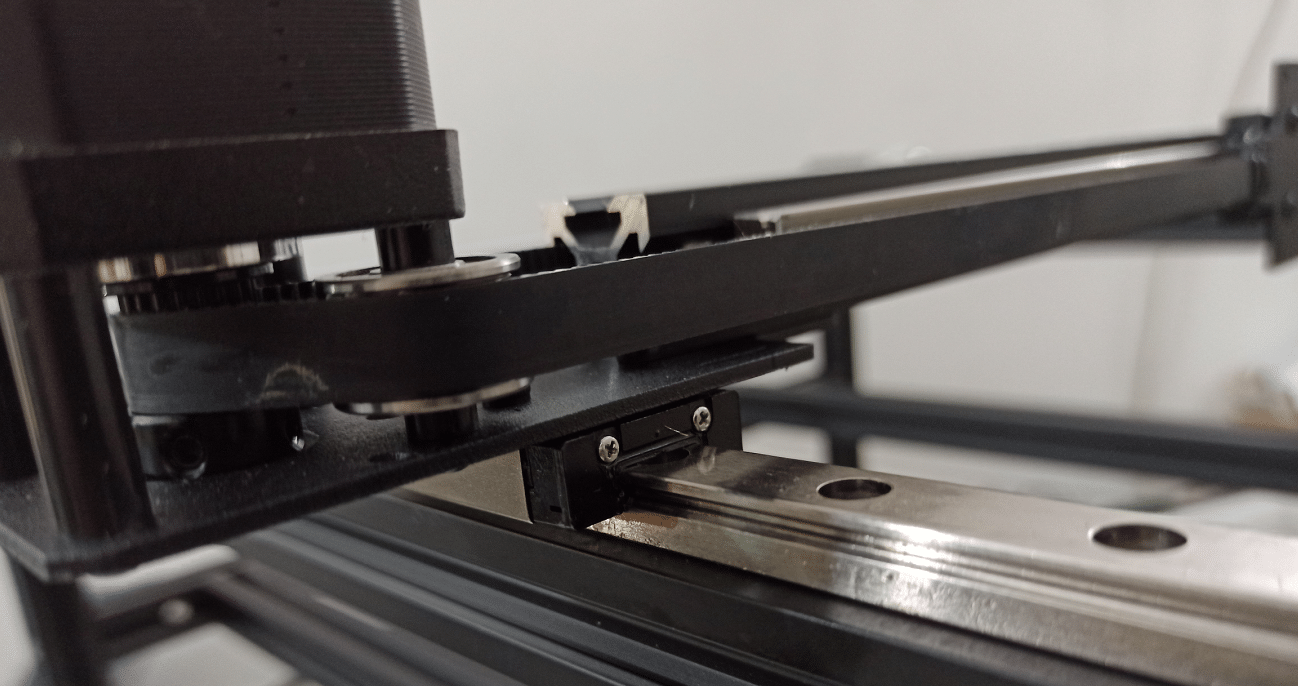

2. Y Axis Belt
Similar to X axis :
Warning
Leaving too much length at the end of the belt will affect the Y-axis reaching the min/max position.
3. Y Timing Pulley

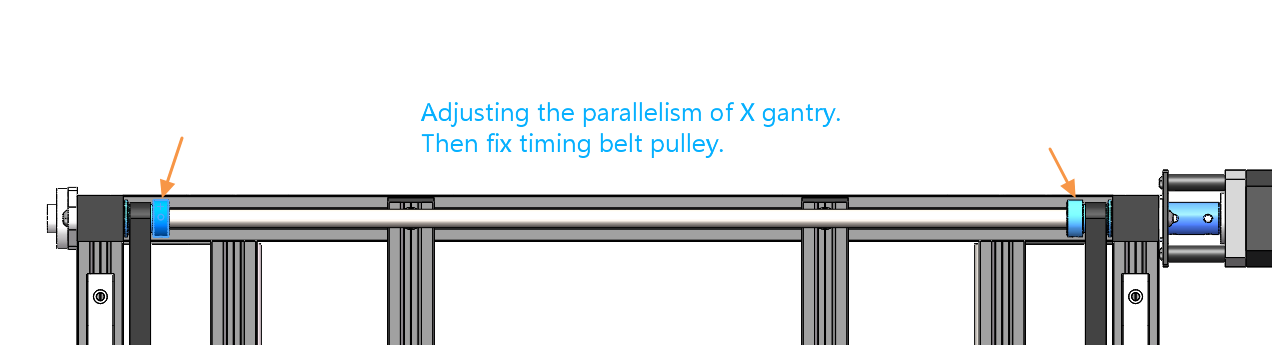

Adjust the parallelism of X gantry (may need to loosen some screws), then fix timing belt pulleys by tightning their respective screws.
